The feature of diaphragm coupling

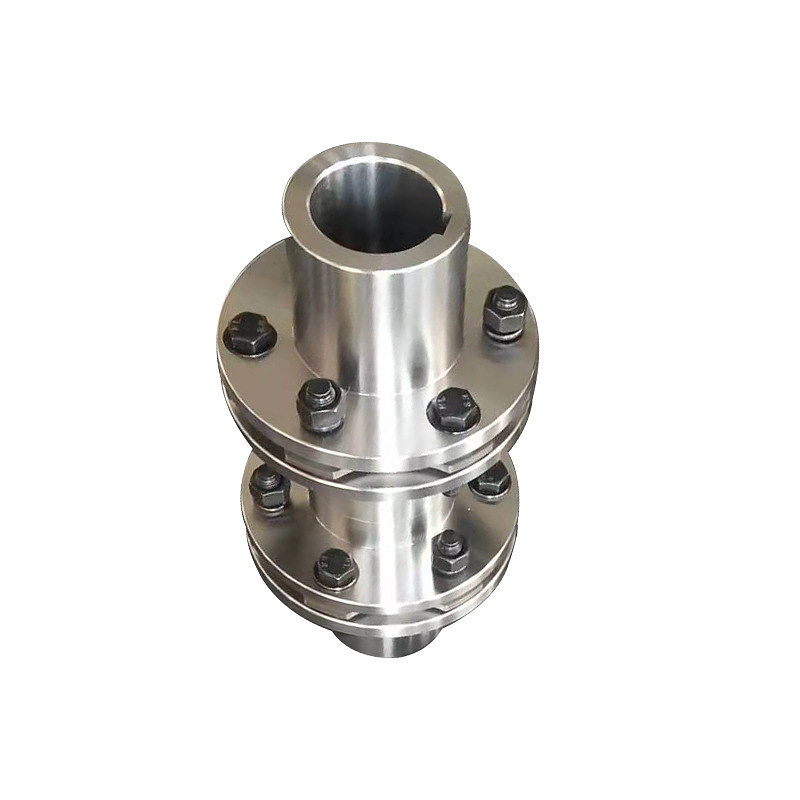

A diaphragm coupling is a coupling in which several sets of diaphragms, that is, stainless steel sheets, are

interconnected by bolts and the like. Each group of diaphragms is composed of several stacked diaphragms.

The diaphragm is divided into two different forms: connecting rod type and whole piece type. The

compensation principle of the diaphragm coupling mainly relies on the elastic deformation of the diaphragm

to compensate for its relative displacement. The diaphragm coupling has a long service life, a relatively compact

structure, is not affected by temperature and dirt, and has high acid and alkali resistance.

It is suitable for shaft transmission systems with corrosive industrial applications.

The compensation principle of the diaphragm is mainly to compensate for the manufacturing and installation

errors and deformation load-bearing conditions that occur when the machine is running, as well as the radial

and angular offsets caused by the increase and decrease of temperature. And because the diaphragm

coupling is an elastic element flexible coupling, its own properties are elastic cushioning, no noise and no

lubrication. It is an ideal product for general couplings today. The production of diaphragm couplings is

composed of at least two sleeves or one diaphragm. Because the diaphragm is professionally nailed to the

sleeve, there will generally be no looseness or two diaphragms. conflict with each other. Of course, there are

also some manufacturers that provide us with two or three diaphragms with one or more rigid components

in between. In this way, diaphragms are divided into single-piece diaphragm couplings and double-piece

diaphragm couplings. The difference between them is that they can skillfully handle various deviation problems

and compensate for the problem of center deviation at one time. The diaphragm is the core component of the

diaphragm coupling product. The diaphragm can be divided into many forms according to its shape, but the

basic compensation principles are the same. It plays an extremely important role in water pumps, hydraulic

machinery, aviation and other fields.
